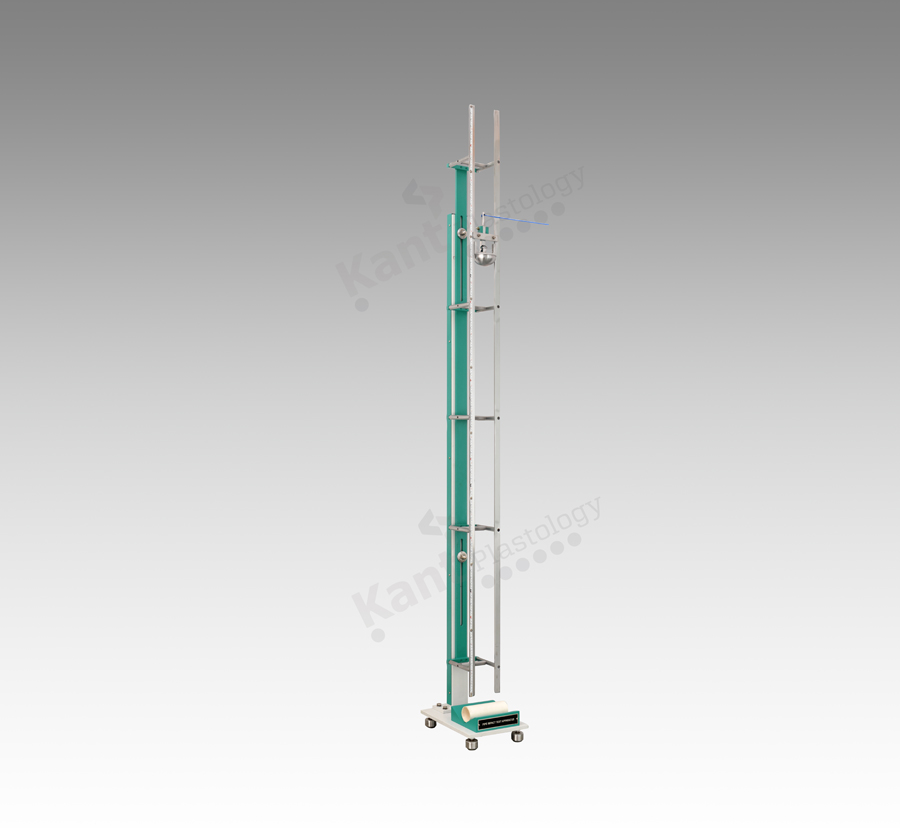

PIPE IMPACT TESTING MACHINE |
Model No.
K-PIT-01
|
Description
Kant Plastology pleased to offer and exclusive range of PIPE IMPACT TESTING MACHINE. The Impact test is usually applicable for uPVC Pipe and Fittings to determine the Impact strength of the same products. The Kant Plastology’s PIPE IMPACT TESTING MACHINE having robust construction, high precision machined parts with dimensional accuracy. The machine consist perfect machined 120°‘V’ block to accommodate the test specimen, operational ease dead weight release mechanism and friction free falling of dead weight.
Specification| MODEL (K-PIT-01) | |
| Falling height | Adjustable up to 2000mm |
| Height adjustment | Manually |
| Height adjustment resolution | ± 2mm |
| Striker (Dart / Dead weight) | Made from mild steel |
| Striker (Dart / Dead weight) | 0.25 kgf, 0.50 kgf & 1.00 kgf – one set of each weight |
| Striker (Dart) release device | Through D.C. magnet / Pull release free falling mechanism |
| Max. dia. of test sample | Test up to uPVC pipe Ø315mm |
| Sample clamping | on 120°’V’ block |
| Paint | Powder coated |
To ease the pipe impact testing method, Kant Plastology has designed a top-notch quality PVC pipe testing machine with the best specifications. Our exclusive range of pipe impact testing machines is suitable for testing various pipe types.
You can use this test Equipment for testing Poly vinyl chloride (PVC), Polypropylene (PPR), High density polyethylene (HDPE), RPVC pipes, Medium Density polyethylene (MDPE), and other types. Our expert engineers designed the machine to meet the operational requirements of various industrial sectors.
Benefits and Uses of Our PVC Pipe Testing Machine
- You can use it to measure the impact behaviour of different plastic pipes.
- Aids in conducting assessments for cracks and fractures.
- Confirms the unique properties of plastic pipes.
- Helps reduce the risk of accidents, failures, and associated costs as well as boosts material performance.
- Helps to measure the impact strength of plastic pipe.
Contact us to learn more about the specifications of the PVC pipe testing machine and its working mechanism!
